Industrial Design Process

Overview

Over the years, I've gradually found myself being involved in most aspects of the Product Design Process.

Below is a framework I've used to guide myself, and others, through the steps needed to design relevant, insightful & well-made products.

Demonstration Project

Dermalogica - Skin Bar

Commissioned by Dermalogica to create a portable workspace where Skin Specialists could demonstrate Dermalogica's skin care products.  Additionally, portions of the design were realistically 3D rendered to be placed on the website.




ID Process Breakdown



Project Scope & provided Research

  • Product Goals
  • Marketing Research
  • Competitor Research
  • Research & Development
  • Brand/Client Style Guides
  • Brand/Client Assets
  • Appearance Expectations
  • Restrictions
  • Budget, cost per product
  • Projected product Quantities
  • Durability
  • Configurability
  • Modularity
  • Materials



Pre-design Research

  • Market
  • User
  • Demand
  • Competition
  • Profitability
  • Available/Practical manufacturing Processes
    • Liability:
      • Laws
      • Engineering
      • Safety
      • Materials



    Conceptualization, Ideation, Idea Generation

    • Studies: Texture, Color, Form
    • Concept Sketches (roughs & thumbnails)
      • Pencil Sketches
      • Layouts:
        • Full Size
        • Scale
      • Human Factors & Ergonomics
      • Concept Sketches (presentation quality):
        • Pencil Sketch Ranges:
          • Good (below-budget)
          • Better (on-budget)
          • Best (above-budget)
        • Colorization in Photoshop

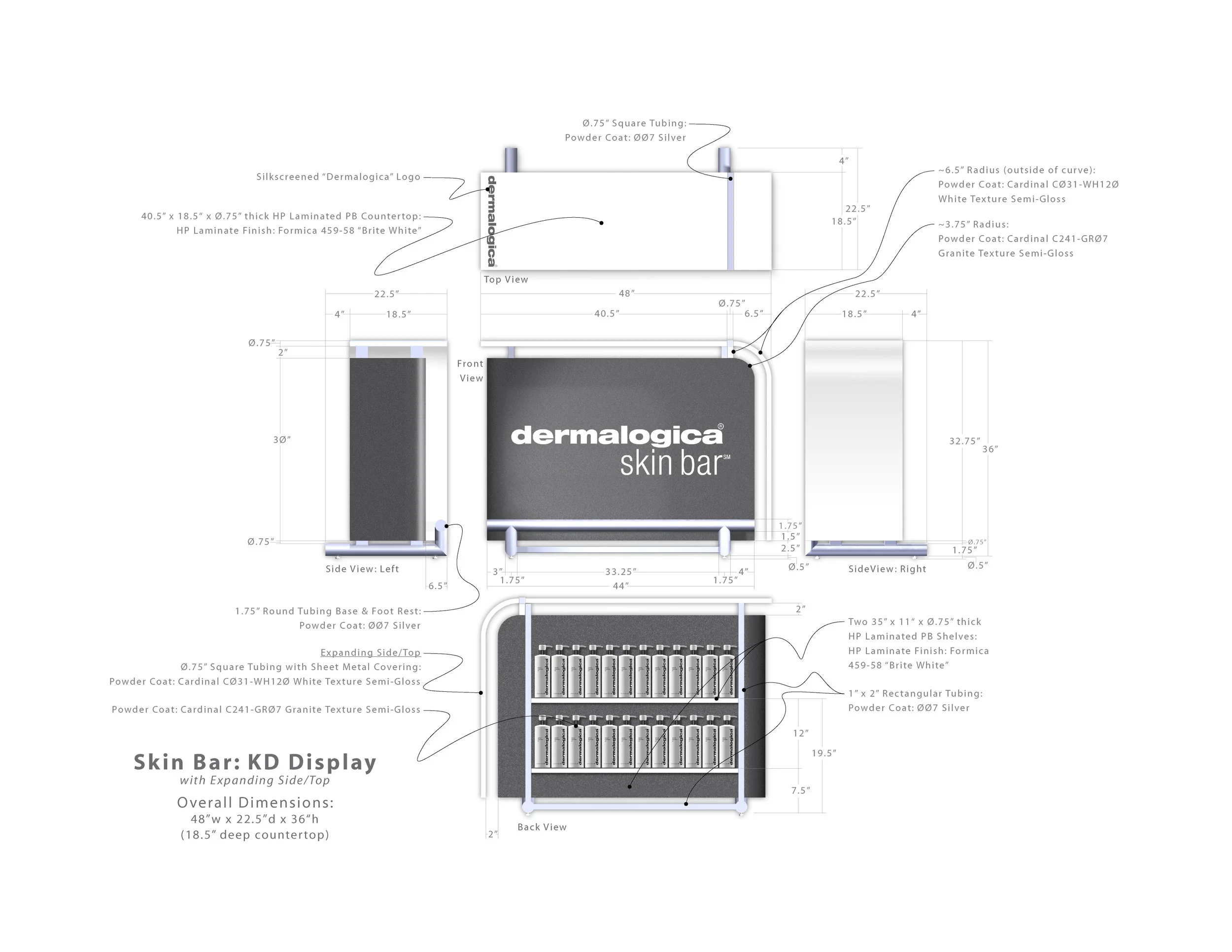

      • Axonometric Views (roughs & presentation quality):
        • Lined or Shades

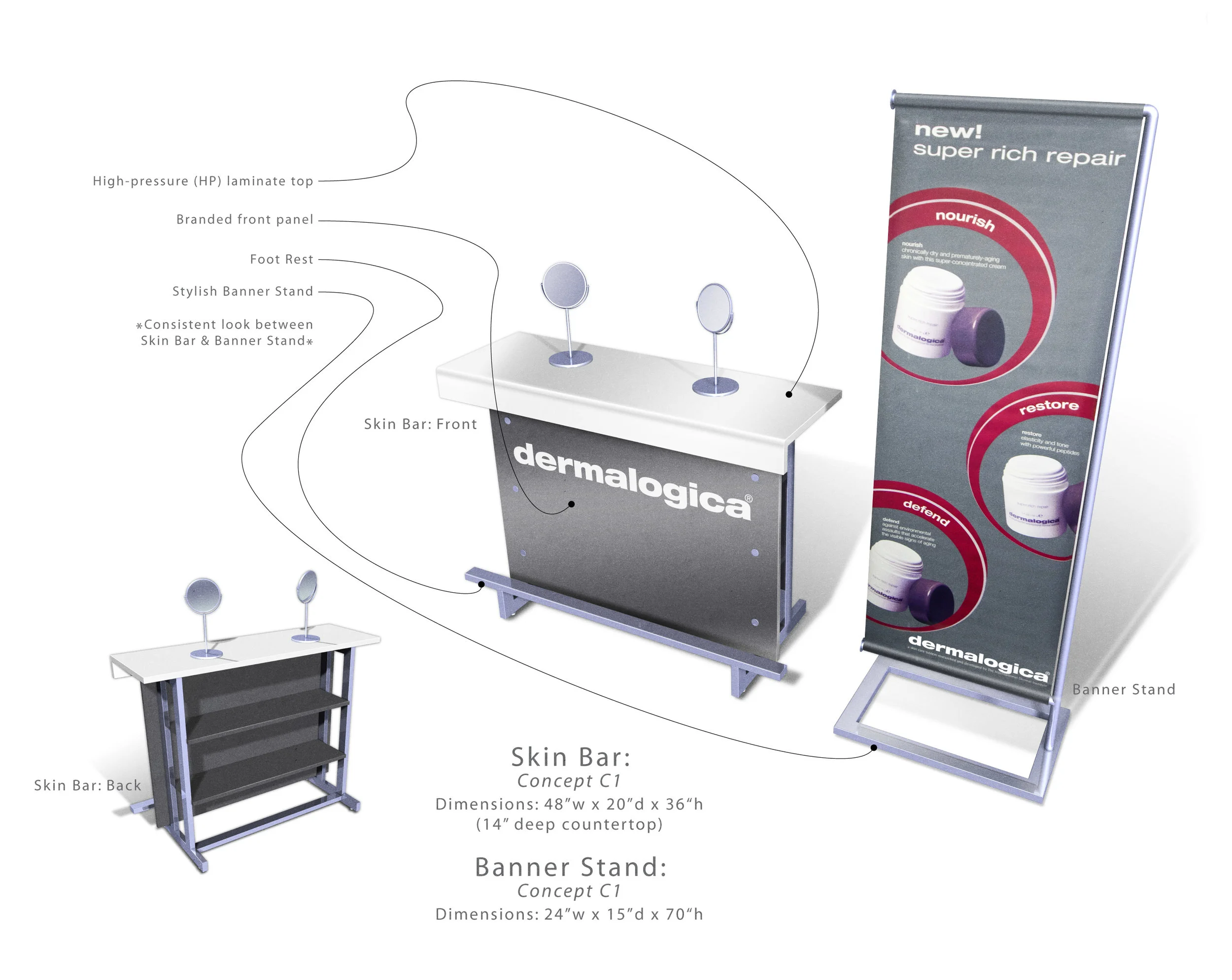

      • Concept Renderings (presentation quality)


      Texture, Color & form Studies...

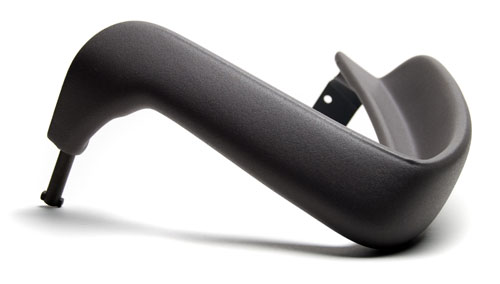

       Texture: Wrinkle Powder Coat

      Texture: Wrinkle Powder Coat


       Texture, Color & Form: Minimalist, Clean-Edge, Metallic Finishes

      Texture, Color & Form: Minimalist, Clean-Edge, Metallic Finishes


       Texture, Color & Form: Metallic, Tubular Structure

      Texture, Color & Form: Metallic, Tubular Structure

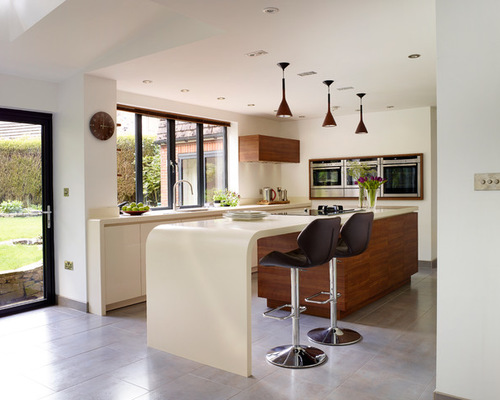

       Color & Form: Sweeping Counter Surface

      Color & Form: Sweeping Counter Surface

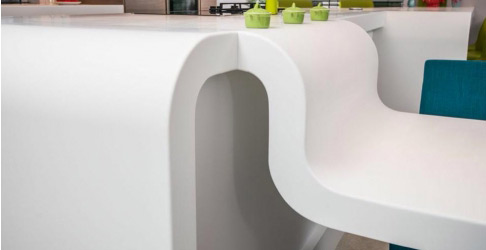

       Color & form: More Geometric Waterfall Counter Surface

      Color & form: More Geometric Waterfall Counter Surface

       Color & Form: Interesting Intersection of Transitions

      Color & Form: Interesting Intersection of Transitions


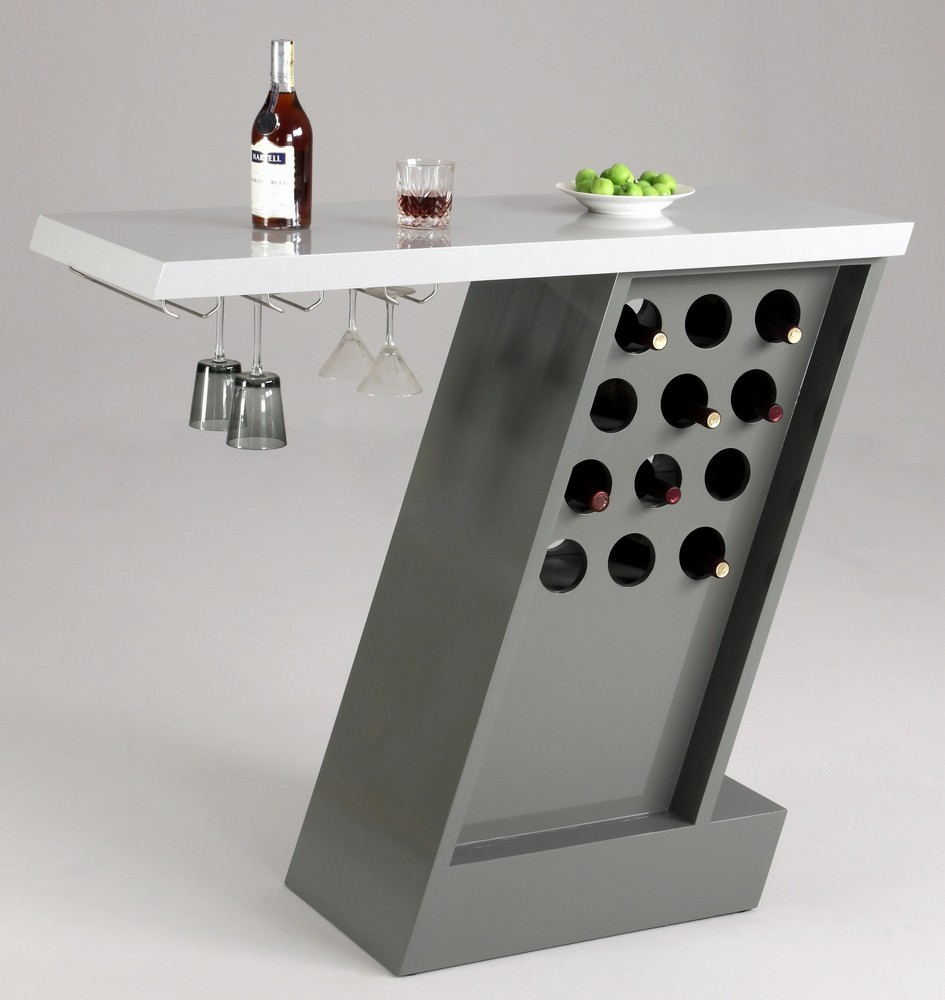

       Color & Form: Dynamic Minimalism

      Color & Form: Dynamic Minimalism

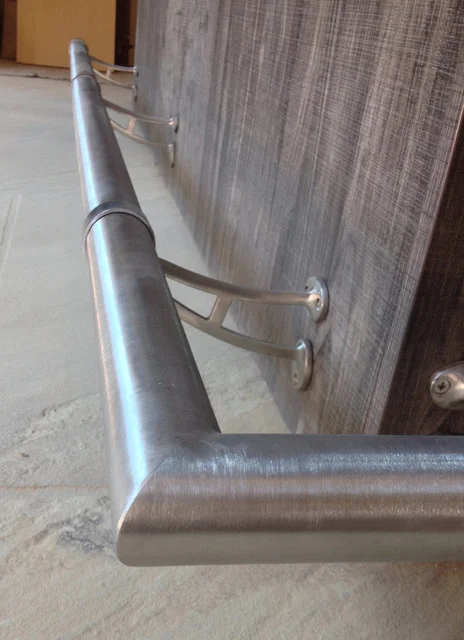

       Form: Corner Transition of Foot Rest

      Form: Corner Transition of Foot Rest


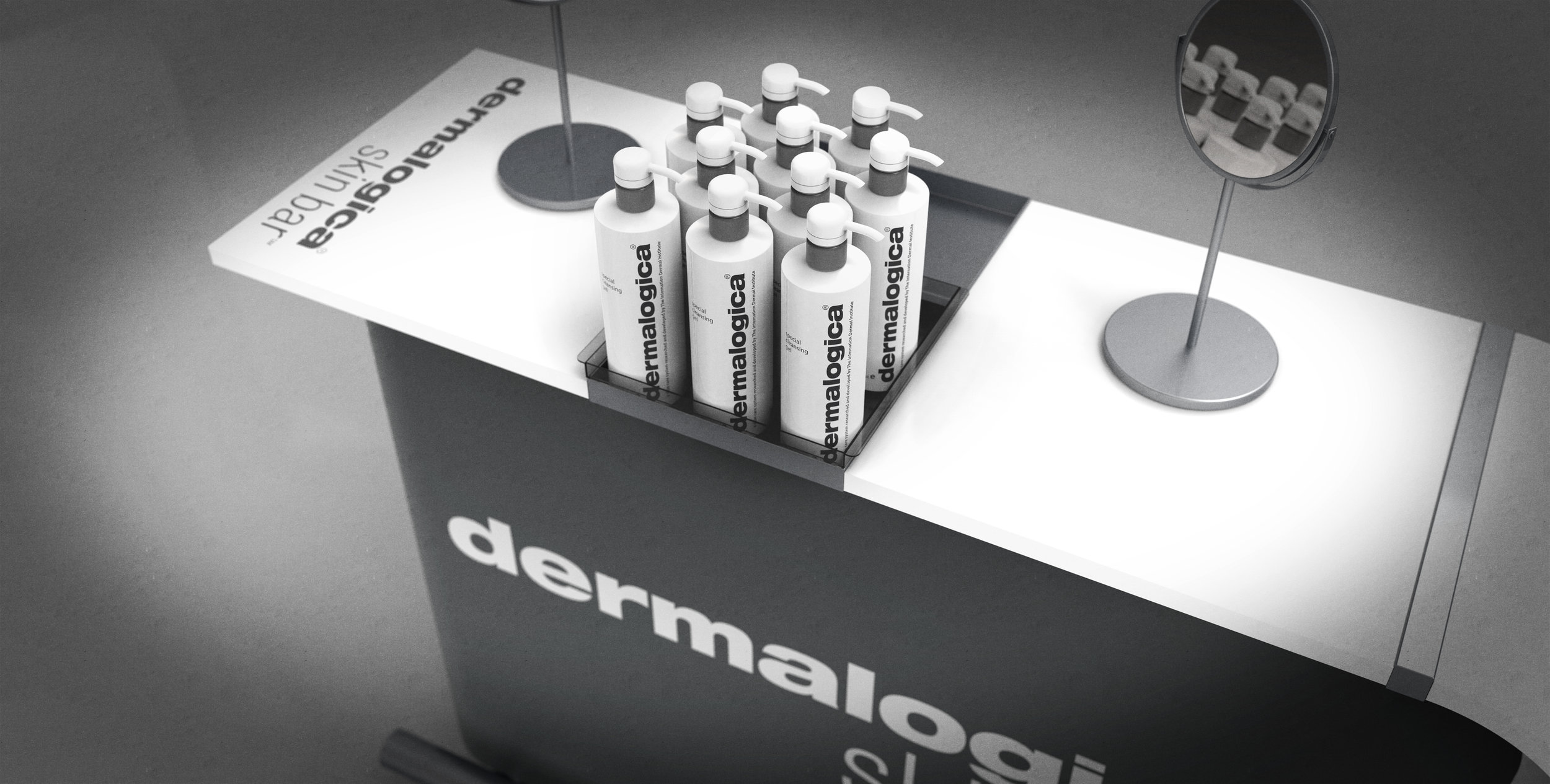

      Concept Renderings...

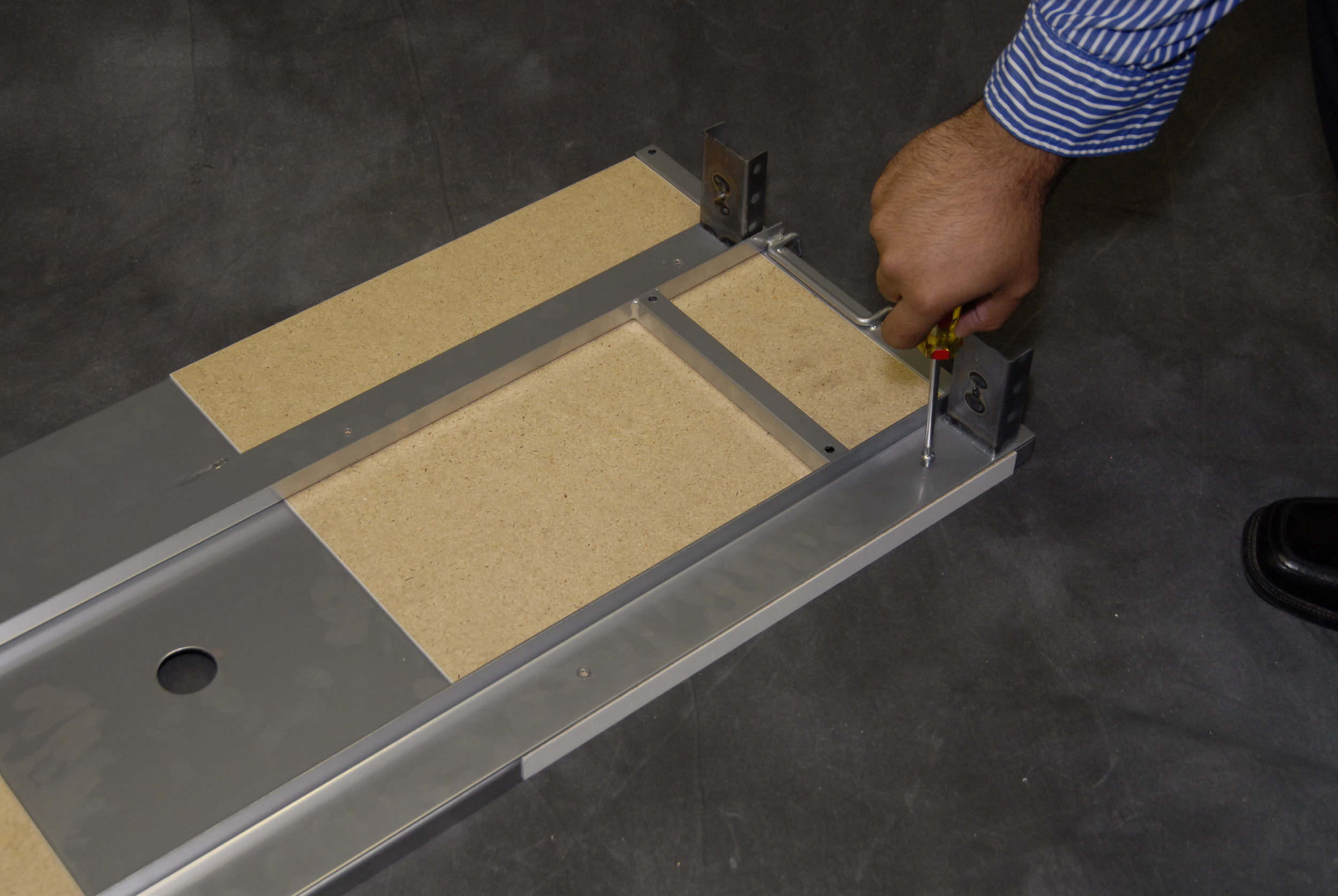

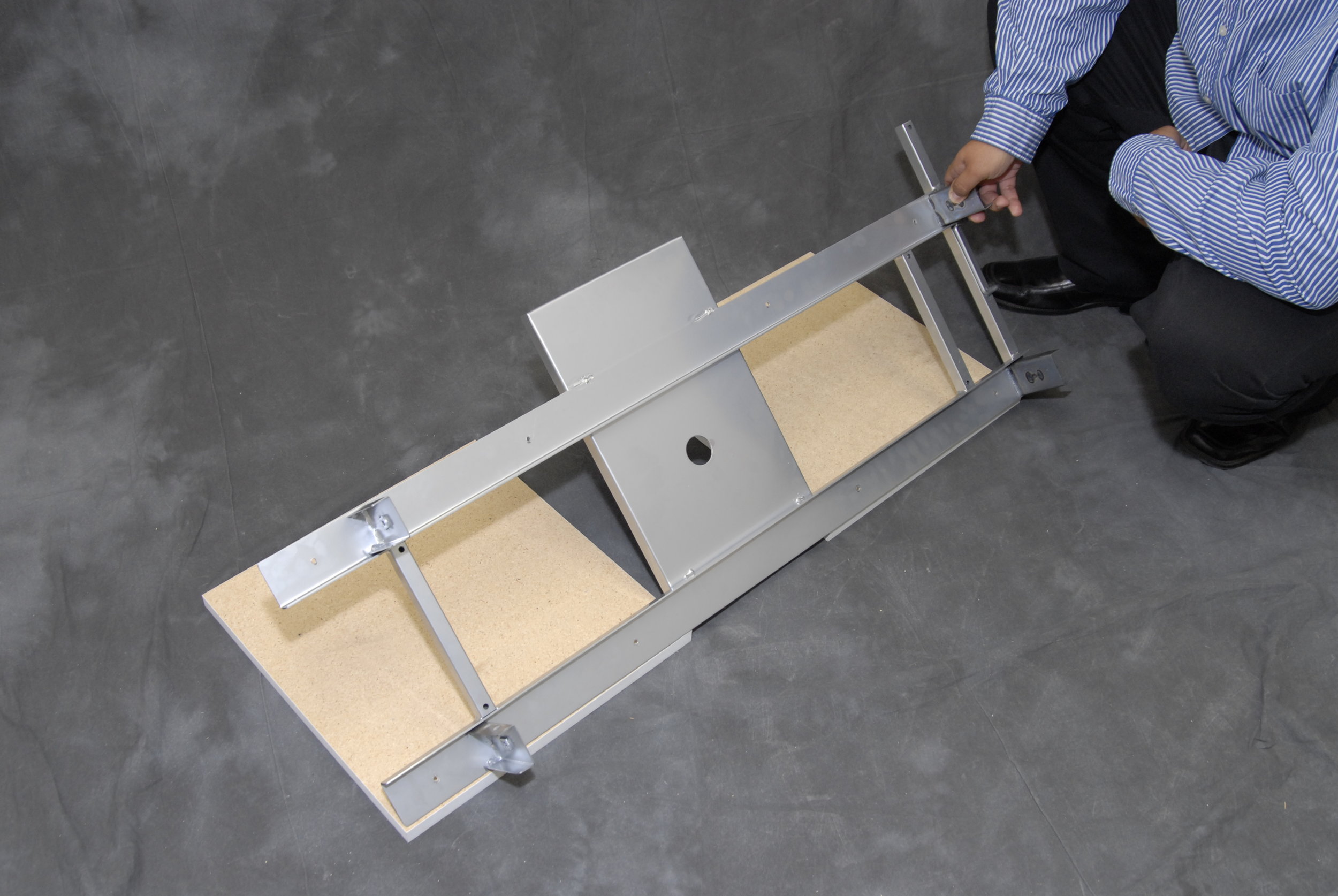

      Visual prototypes & Working Prototypes

      • Corrugated
      • Foam Core
      • Clay
      • Sculpey
      • Scotch Tape
      • Bubble Gum
      • Whatever works



      Screening Concepts

      • Internal Screening:
        • Industrial Design Group & Department Reviews:
          • Studies
          • Drawings
          • Layouts
          • Renderings
          • Mockups
        • Personal: Never show the designs you don't want to be chosen, if you do, those are the ones that will be inevitably favored!  You won't want to develop something that you personally dislike.
        • Client Presentation Created
      • Client Screening:
        • Presentation given to Brand/Client, involving both Sales & Industrial Design
        • Brand/Client chooses preferred design solution/direction



      Initial CAD Development

      • Departments Involved:
        • Industrial Design
        • Prototyping
        • Engineering
        • Estimation & Project Management
        • Purchasing
        • Vendors
      • 3D Renderings (presentation quality)



      Estimation:

      • Estimations - Project Management/Estimation Department:
        • Costs
        • Timelines:
          • Prototypes
          • User Research
          • Test Runs
          • Design & Update Cycles
          • Production
      • Vendors:
        • Estimates
        • Material Yields
        • Optimized manufacturing methods
        • Material choice refinement
        • Samples
      • Ball Park Estimate(s) - avoid if possible



      Design Concept Review, Costing & Prototype order

      • Present tight, 3D Concept Renderings to Brand/Client
      • Provide costs & timeline estimates
      • Prototype order



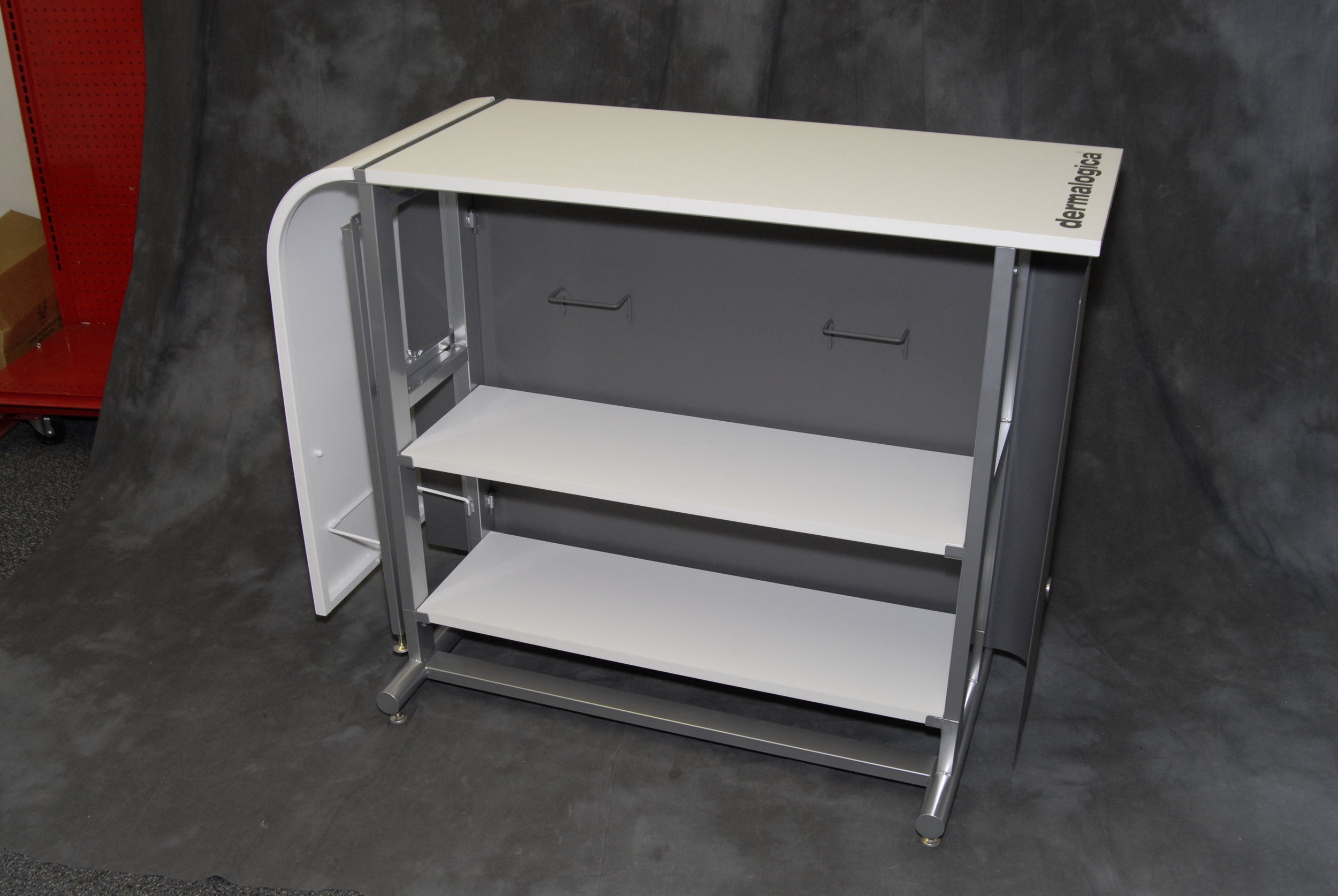

      FUNCTIONAL Prototype & User Experience Prototype

      • Actual (if possible):
        • Scale
        • Materials
        • Processes
        • Finishes
      • Rapid Prototyped:
        • Injection molded components
        • Milled components



      Prototype Review

      • Client/Brand:
        • Expectation
        • Brand alignment



      User Research

      • Tests:
        • Usability Tests
        • Focus Groups
        • Contextual Interviews
        • Individual Interviews
      • Testing Factors:
        • Human Factors & Ergonomics
        • Passive & Active
        • Safety
        • Comfort
        • Ease of Use
        • Impressions
        • Intentions
        • Appearance/feel/touch
        • Branding and without Branding (Blind Testing)
        • Sale-through
        • Shoppability
        • User Suggestions
        • Etc...



      Design Refinement & updated prototypes

      • Using Research in-progress, as a guide, changes are made to CAD
      • Updated prototypes are rotated into User Research



      Sample Test Run

      • A determined number of products are sent into the market for field testing
      • Results will help determine viability, final production quantities & any fine design updates




      CAD Finalized

      • CAD Models, Assemblies & final dimensioned drawings




      Final 3D Renderings & Photography

      • Photo-Realistic Renderings using CAD data (KeyShot)
        • Website Marketing
        • Brochures
        • Instruction Sheets
        • Animations
        • VR
      • Product Photography



      Production Samples

      • Used to determine final result
      • Durability testing, if necessary
      • Used for production sign-off & as a benchmark for production quality



      Production & Quality Assurance Processes

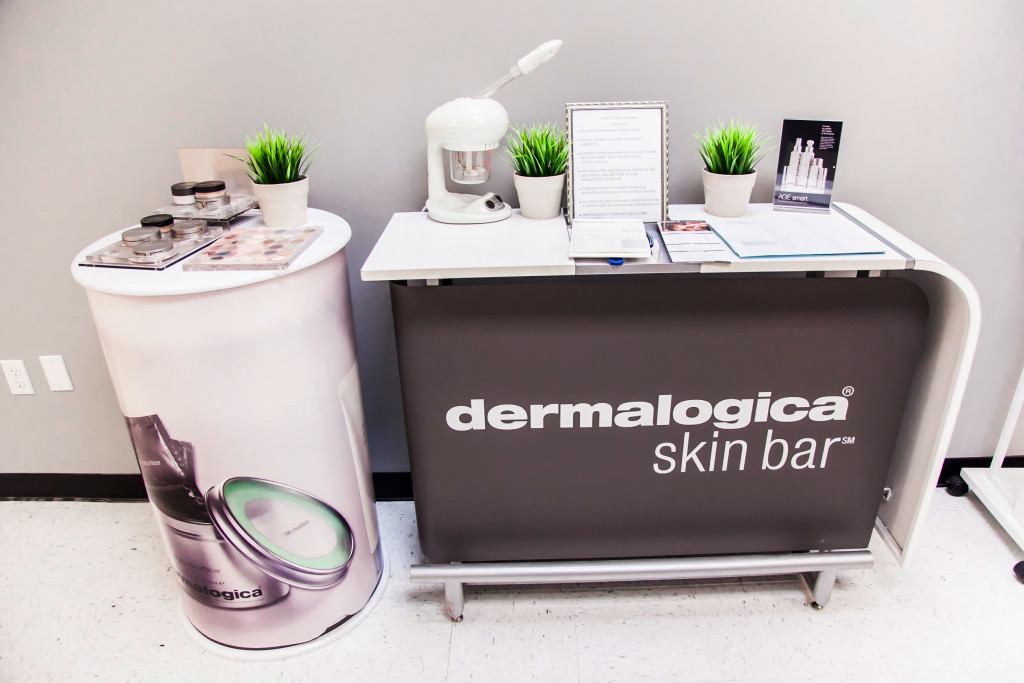

      • Production pieces in-store & in-use...



      Influence on the Future of the Brand

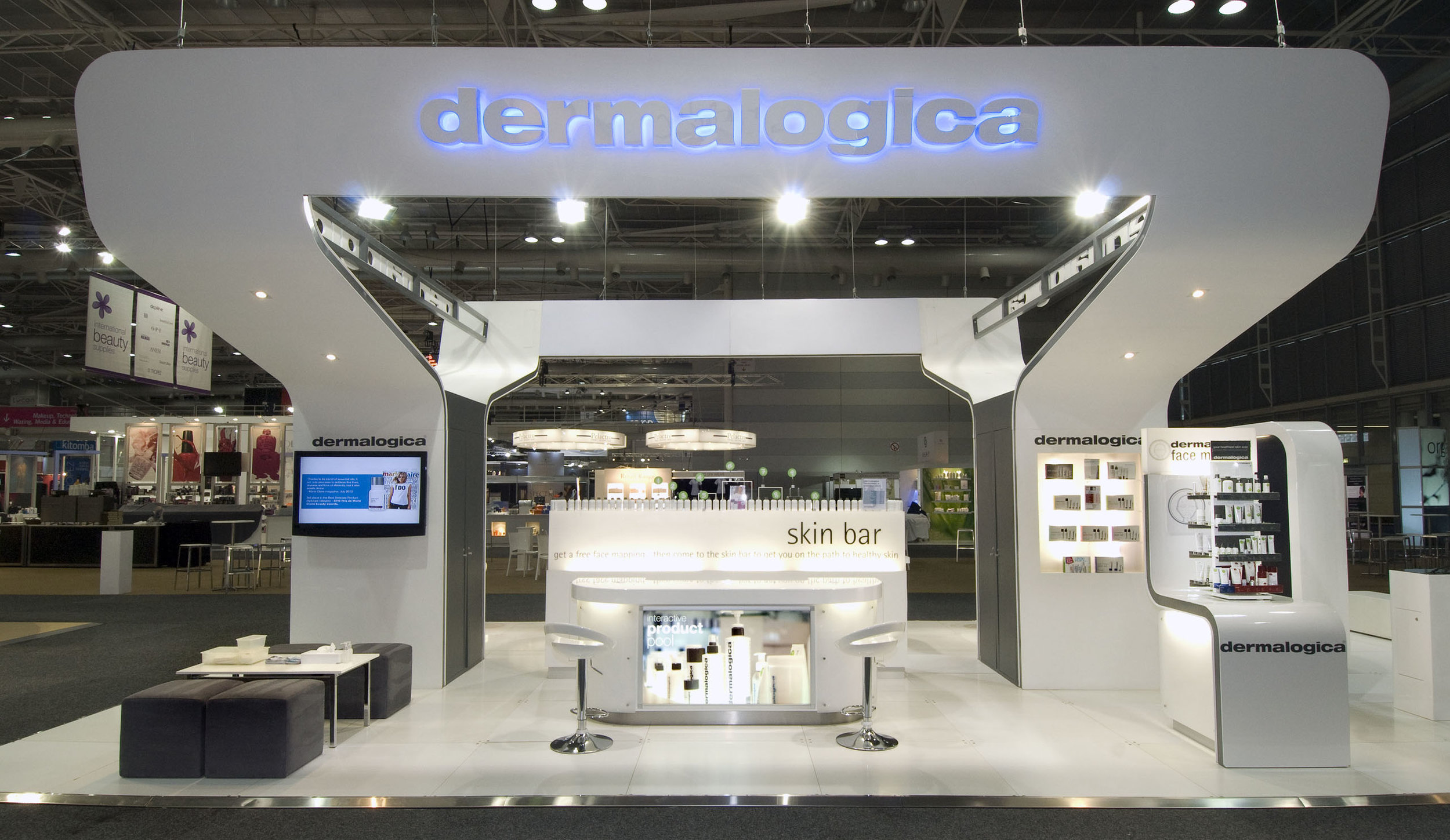

       Tradeshow Design

      Tradeshow Design

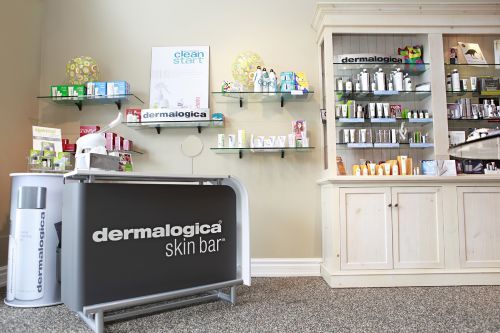

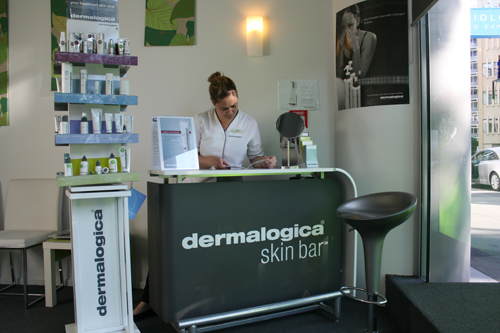

       Spa/Store Design

      Spa/Store Design
